How to Place a PCB Order from China?
Ordering printed circuit boards from China can reduce costs, shorten production cycles, and open access to advanced manufacturing capacity. However, a successful pcb order requires more than comparing online prices. Buyers must verify capabilities, materials, certifications, communication quality, and inspection procedures before sending production files.
Dr. Hayao Nakahara, a respected PCB industry analyst, has stated, “The PCB industry is a global industry.” This observation matters because international sourcing involves technical and commercial coordination. A supplier may quote FR-4 material, six layers, and ENIG finish, yet misunderstand impedance requirements or copper thickness. That mistake can affect signal integrity, assembly yields, and final reliability. Details matter.
Start with a complete documentation package. Include Gerber files, drill files, a bill of materials, pick-and-place data, stack-up requirements, and assembly drawings. Ask the manufacturer to review manufacturability before production. Confirm whether the quoted price includes tooling, testing, packaging, and shipping. Request sample photographs and recent quality records. Certifications help, but they do not replace process evidence.
Independent inspection can reveal solder-mask damage, wrong hole sizes, or surface-finish defects. For critical products, consider prototype testing before placing a larger pcb order. I have seen buyers focus heavily on unit price and overlook freight, rework, and engineering changes. That approach is understandable, but incomplete. A cheaper board is not a better purchase when delivery becomes uncertain.
There is no perfect sourcing decision. Careful questions reduce avoidable surprises. This guide explains how to evaluate Chinese PCB suppliers, prepare files, compare quotations, control quality, and manage delivery with greater confidence.
Define PCB Requirements with IPC-2221, Layer Count, Materials, and Tolerances
Before requesting a PCB quotation from China, define the board against IPC-2221 guidance. State the operating voltage, current, frequency, temperature range, and expected service environment. These details affect spacing, insulation, copper weight, and thermal design. Do not write only “standard FR-4.” Specify the laminate class, dielectric thickness, copper thickness, and allowable thickness range. A vague material request can produce different electrical results between batches.
Set the layer count from routing and performance needs, not habit. A two-layer board may suit simple controls, while dense signals often require four or more layers. Ask for a proposed stackup showing each dielectric and copper layer. For high-speed designs, define controlled impedance targets and test requirements. Keep return paths continuous. I have seen boards pass visual inspection yet fail in testing because the stackup was never confirmed.
Tolerances should appear in the fabrication drawing and order documents. Include finished board thickness, hole diameter, annular ring, outline dimensions, solder mask registration, and impedance limits. Separate critical tolerances from general tolerances. Otherwise, a factory may apply a reasonable default that still harms your design. Provide Gerber or ODB++ files, drill data, a stackup, and a revision-controlled drawing. Request a manufacturing review before production. That review can reveal narrow spacing, weak vias, or an unrealistic hole-to-edge distance. My own early specifications were too optimistic. I underestimated fabrication variation around small vias. Allow practical margins, then confirm them with measured capability data rather than assumptions.
Verify Chinese Supplier Quality Through ISO 9001, UL, and IPC-A-600 Records
How to Place a PCB Order from China?
Ordering a PCB from China should begin with evidence, not a low quotation. Ask the supplier for a current ISO 9001 certificate and confirm its scope, issue date, and certification body. A certificate may cover administration only, not your actual production line. Check the factory address carefully. It should match the audited site.
UL records can support confidence in material safety and traceability, but they need close review. Confirm the approved material type, applicable file details, and whether the record covers your board construction. IPC-A-600 records show how the supplier evaluates workmanship, including conductor spacing, plating, solderability, and laminate condition. Request recent inspection reports with hidden customer information removed. Real records usually contain measurements, limits, and occasional failures.
I once trusted a certificate without checking its scope. That was careless. During supplier evaluation, request a process flow, incoming material records, and a sample inspection report. Ask how nonconforming boards are isolated and corrected. A reliable engineer should explain these steps clearly, using photographs or production data when possible. Order a small pilot batch before approving volume production. Inspect hole walls, edge finish, solder mask alignment, and surface cleanliness under magnification. Keep your own acceptance criteria in writing. Documents help, but they do not replace physical verification. Errors still happen. Your review should remain active after the first shipment.
Manage Production, Electrical Testing, Inspection, Shipping, and Import Documents
How to Place a PCB Order from China?
A reliable PCB order begins with controlled production data. Send approved Gerber files, drill files, stack-up details, and a complete bill of materials. Confirm board thickness, copper weight, surface finish, solder mask color, and impedance requirements in writing. I also request a sample panel before releasing the full quantity. Small file mismatches can create expensive delays.

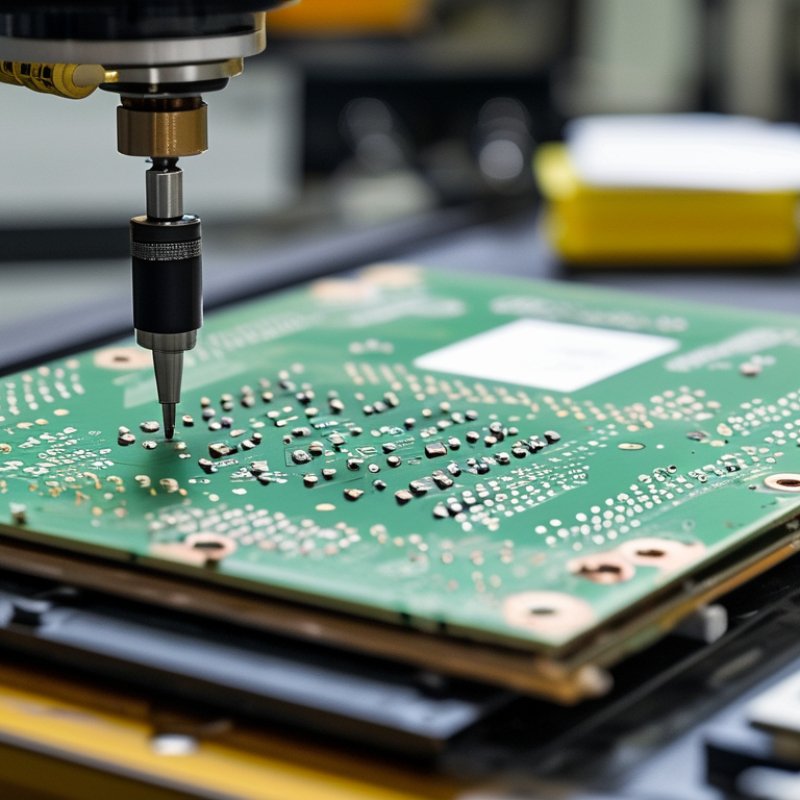

Production updates should include material arrival, lamination, drilling, plating, and final assembly dates. Electrical testing may include continuity, isolation, flying-probe testing, ICT, or functional testing. Provide clear test limits and fixture requirements. During inspection, check dimensions, solder joints, component polarity, labels, and packaging. Photos with scale references are useful. They reveal details that a short report may miss. My first production schedule was too optimistic. Customs delays and rework can change everything.
Before shipment, match the carton count with the packing list. Ask for commercial invoices, packing lists, certificates of origin when required, and transport documents. Confirm tariff codes and importer information with a qualified customs professional because requirements differ by destination. Use moisture barriers, desiccants, and shock protection for sensitive assemblies. Record carton weight and dimensions before pickup. Air freight may be faster, but consolidated shipping can reduce cost. I prefer a documented approval gate before dispatch, although it occasionally slows the order. That pause has prevented incorrect labels and missing paperwork.
How to Place a PCB Order from China?
Typical planning time for production, electrical testing, inspection, shipping, and import documentation
For a standard PCB order, production is usually the longest stage. Electrical testing and final inspection help verify quality before shipment, while international shipping and import documentation affect the total delivery schedule. Actual lead times vary by board complexity, order quantity, shipping method, and destination country.
